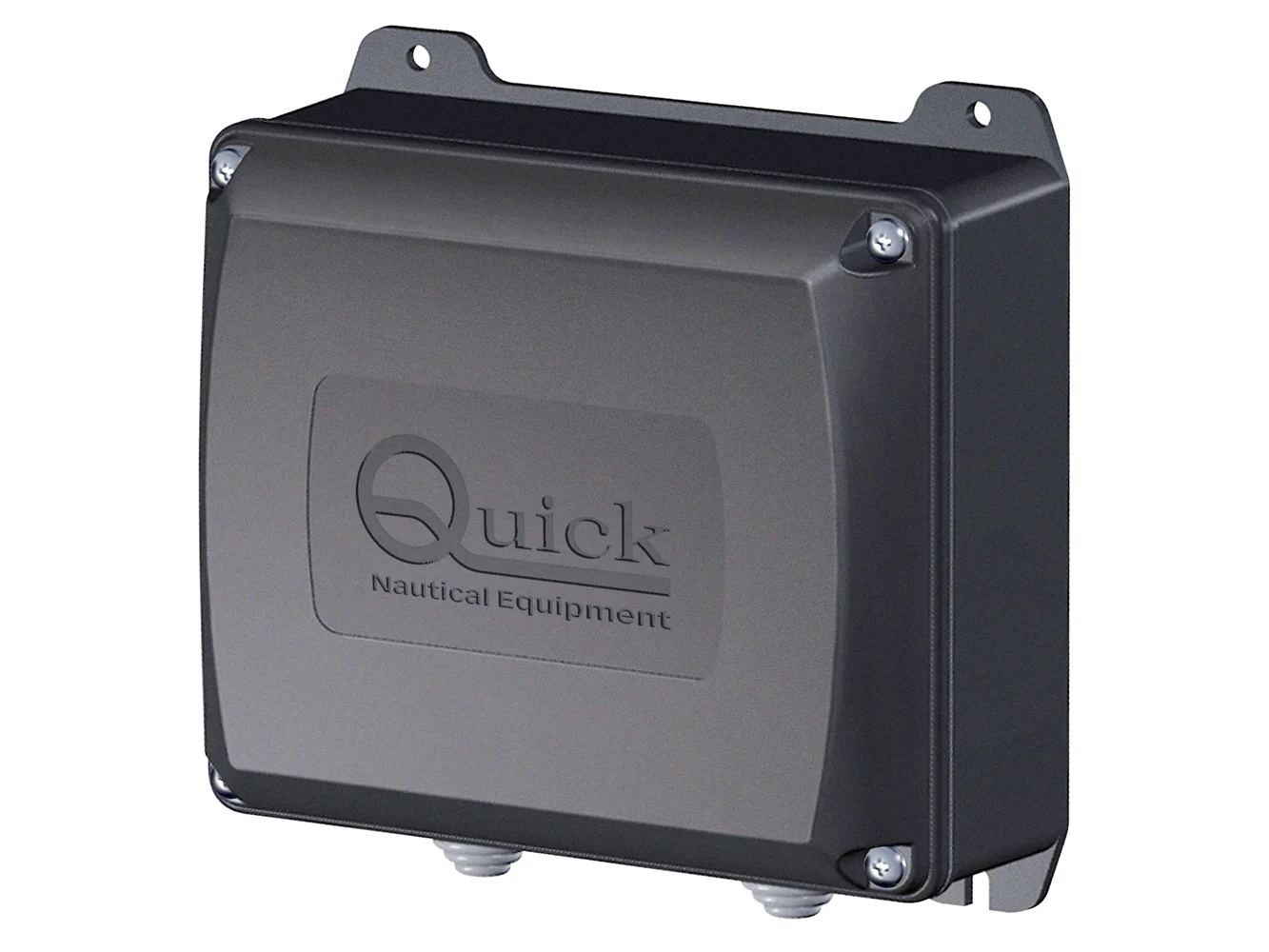

Quick Radio Remote Control Receiver 913Mhz
Features
- Number of relays – 4
- Full power range (from 10.5 to 31Vdc)
- Relay current carring capacity – 15 A
- Power absorption in stand-by mode – 25 mA
- Microcontroller-operated functions
- FSK modulation and carrier frequency 913Mhz
- Operating temperatures from -15°C to +70°C
- Indication of the system operating status, errors and problems by means
of LED and seven-segment display - Protection against polarity inversion
- Protection against low battery
- 50 transmitters can be stored
- Translation mode to activate more receivers, installed in different
spots, by means of one transmitter - Programmable digital filter
| Owners Manual | https://productimageserver.com/literature/ownersManual/50153OM.pdf |
