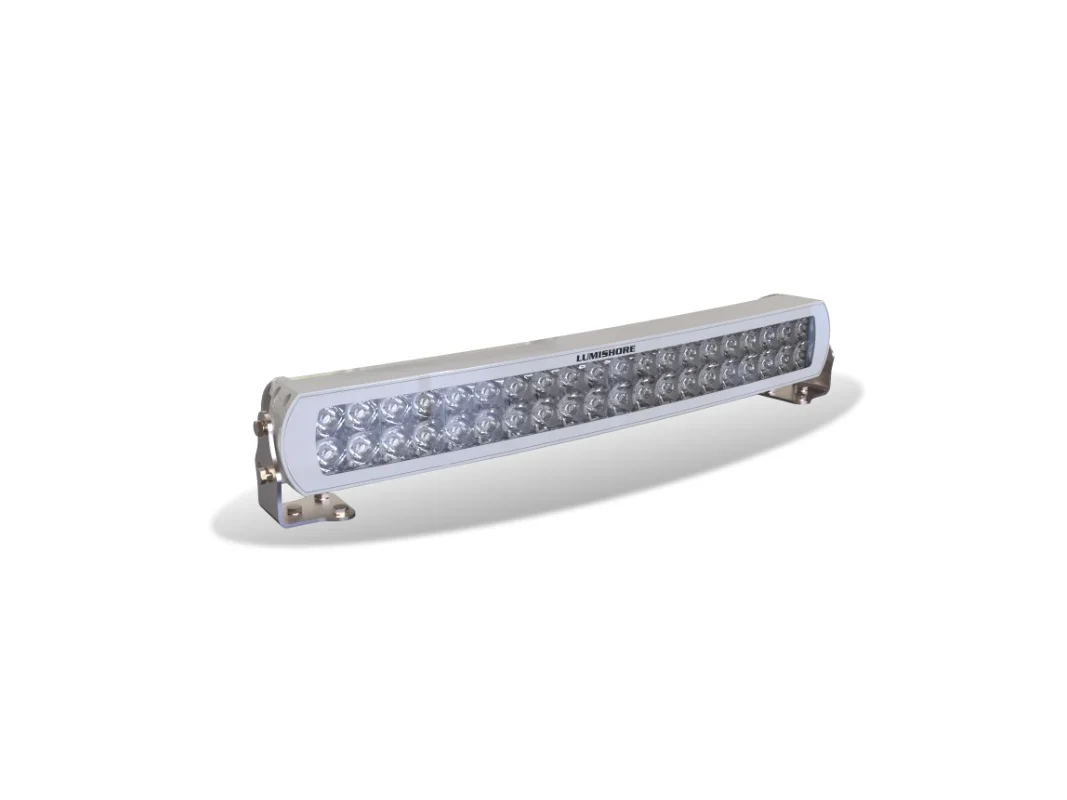

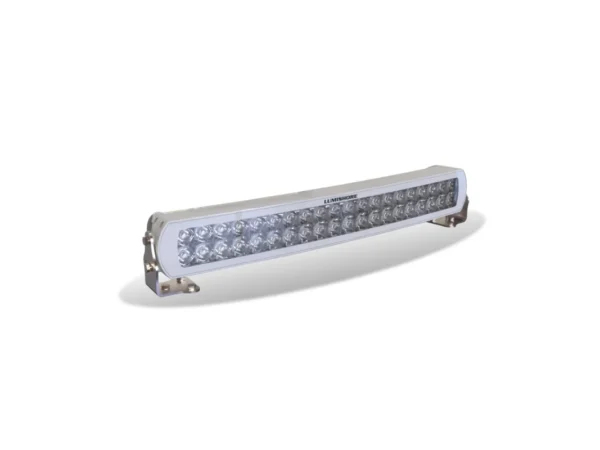

Lumishore 20in Curved Lightbar White LED, White Housing 12/24vDC
Model: 010-04462-00
Designed to offer a high-intensity light source, Lumishore Light Bars cover a wide spread area.
The 20” (60cm) Light Bar generates a powerful 15,000 fixture lumens of crisp, white light to illuminate the hardest to see places.
Designed to withstand extreme marine environments, completely water tight (IP68 compliant) and constructed with marine-grade powder coated aluminium. These sleek, low profile lights enhance your boat’s fit-out, even when not in use.
Suitable for T-Tops, helm roofs, fishing towers and bow platforms.
Controllable via an on/off switch, ECLIPSE Command Center or EOS-LUX Command Center.
Specifications
| Available colors | White (5500 K) |
| Lumens | 33,750 |
| Fixture Lumens | 15,000 |
| Number & Type Of LED | 40 x 10W White LED |
| LED Power HICOB Array | Yes |
| Typical LED Life | 50,000+ Hours |
| User Control Options | On/Off Switch (Third party supplied), ECLIPSE Command Center or EOS-LUX Command Center |
| Electrical Installation | Simple 2 Wire Connection (3 Wires when used with EOS-LUX Command Center) |
| Housing Type | Powder Coated Aluminium Body with Makrolon Lens |
| Driver | Internal |
| Supply Voltage Range | 10.5—31 V DC |
| Max Current Draw 12/24V | 12.8 A/6.4 A |
| Beam Angle | 9° – 20° Letterbox Beam (Vert – Horiz) |
| Water Ingress Protection Rating | IP68 |
| Warranty | 3 Years |
What’s in the Box:
- One (1) Light Bar – Curved 20″
- Stainless steel bracket and fasteners
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.
