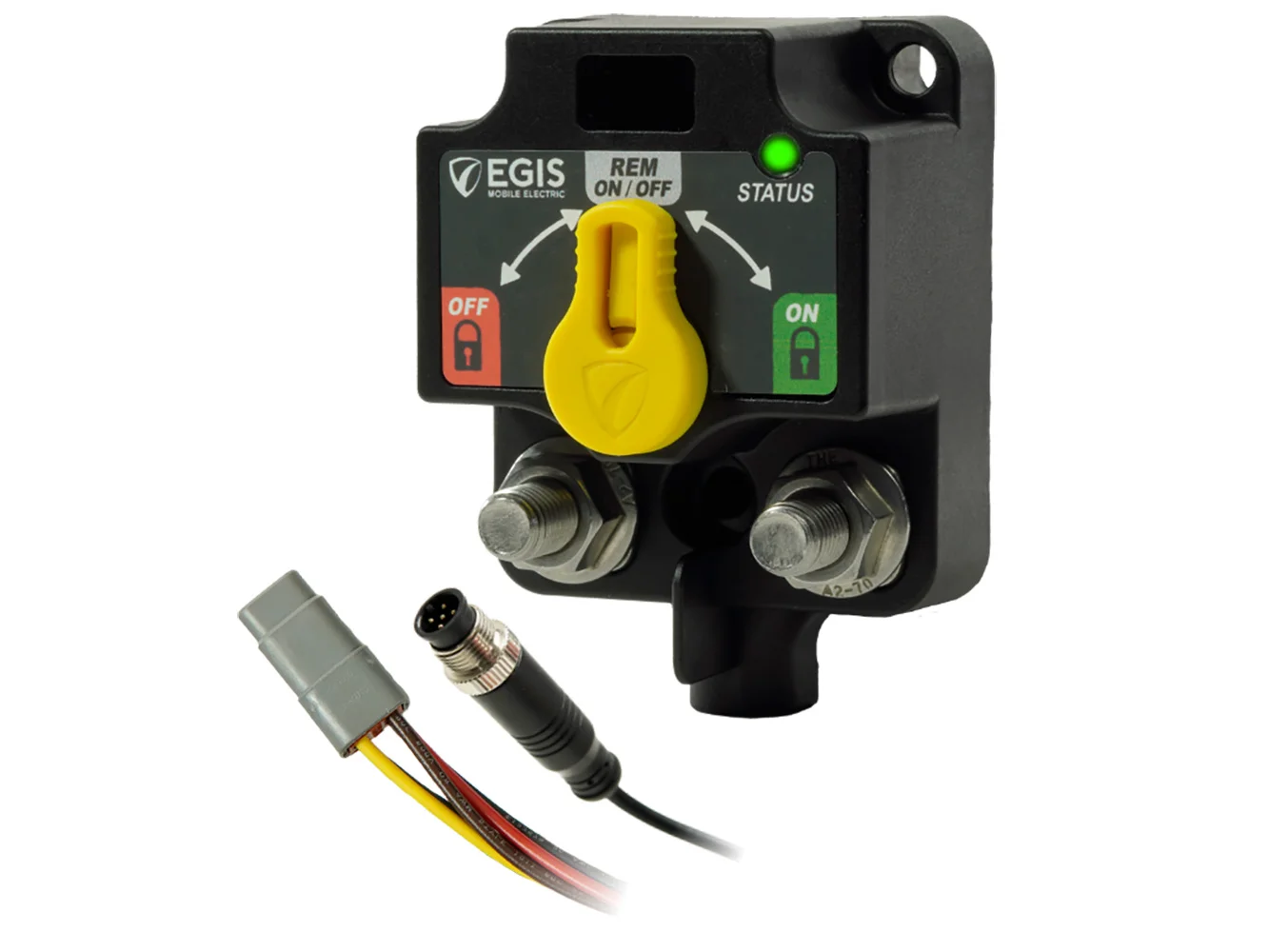

Single XD – NMEA 2000 – Relay with Knobs – 4 Position DT
Features:
- Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
- 500A continuous / 1600A cranking (per switch) – supports all standard marine electrical systems.
- Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
- Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
- 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
Applications:
- Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage.
- Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility.
- 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
- Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
- Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.
